City overview with dots showing the medium voltage grid

Medium Voltage Sensors for a Smart Grid

Now there's an economical, proven way to gain visibility to distribution grid electrical measurements.


3M™ Sensored Cable Accessories (SCA)

3M™ Sensored Cable Accessories (SCA) provide a retrofittable, compact and economical way for Distribution System Operators (DSOs) to gain visibility and data from their distribution grid with voltage and current measurements.

As the need and importance of measurement and data in the underground grid rises, 3M SCA provides a simple path to high accuracy solutions for assessing and improving fault detection, power flow and power quality. The advent of new regulations and integration of renewables into the medium voltage network, make the need for high accuracy measurements critical for assessing the health of your electrical grid and better managing the future of the network’s grid modernisation.

  • 3M helps provide visibility into the medium voltage (MV) electrical infrastructure

    3M Sensored accessories easily retrofit inside cable compartments, air insulated switches, gas insulated switches or on transformers inside substations. When you upgrade your existing medium voltage substation with our product, you gain high accurate sensing and overall insight into multiple nodes without the need to replace.

Diagram showing the medium voltage electrical infrastructure

3M Sensored Cable Accessories: Sensing Things to Come

Right for now, right for tomorrow and no additional space needed within your grid.

How to Install 3M SCA

Our application video shows you how to install our Sensored Cable Accessories system and how it compares to conventional approaches.

Herobanner showing Sensored Cable Accessories

Transforming the grid starts here

Sensored Plug-In Installation Steps

Voltage and Current Measurement Made Easy

The 3M™ Sensored Cable Accessory QX-Generation 2.0 enables you to measure critical parameters (voltage, current, phase angle) in an underground medium voltage electrical network. This solution incorporates highly accurate voltage and current measurement integrated into one product which means you get precise measurements without modification of the installed equipment. Additionally, the sensors are passive components thereby not requiring an external power source for sensing.

3M Sensors and Cold Shrink technology ensures easy and fast installation for a wide range of cable cross sections.

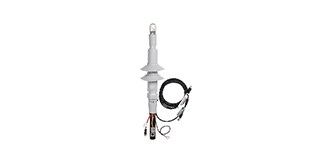

  • SCA H3 Sensor kit 24 kV termination with current sensor
    SCA H3 Sensor kit 24 kV termination with current sensor

    QX-2.0 93-ES 620-1 TI24-vi1-C

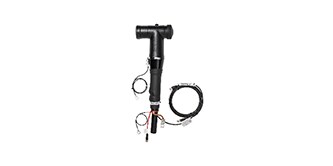

  • SCA H3 Sensor kit 24 kV plug in with current sensor
    SCA H3 Sensor kit 24 kV plug in with current sensor

    QX-2.0 93-EES 620-1 BI24-vi1-C

  • SCA H3 Sensor kit 11 kV plug in without current sensor
    SCA H3 Sensor kit 11 kV plug in with current sensor

    QX-2.0 92-EES-621-1 BI11-vi1-C

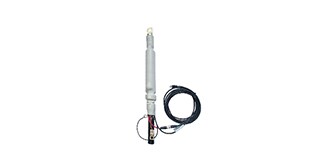

  • SCA H3 Sensor kit 24 kV termination without current sensor
    SCA H3 Sensor kit 11 kV termination with current sensor

    QX-2.0 92-ES-621-1 TI11-vi1-C

Real-Time Data for underground systems, designed specifically for primary medium voltage equipment.

Diagram showing real time data and value

Use cases
