Windscreen replacement and installation
-
A range of one-component polyurethane adhesives, designed for windscreen, side and rear window bonding. Easy to extrude with 3M™ Applicators, the adhesive comes in various sizes of sachet and cartridge. Three versions are available allowing drive-away times of one, three or eight hours.
-
Glass Solution for Windshield Replacement
- Wide range offering 1 to 8-hour drive-away times
- Clear and safe application method
- User friendly cartridges and sachets
- New 1-hour High Modulus Low Conductivity product
- Always select appropriate Personal Protective Equipment - Eyewear, gloves, hearing and respiratory protection for your job and workplace!
Step 1 - Pinch weld preparation
-
Remove the old windshield and clean the original polyurethane adhesive using 3M™ Adhesive Cleaner 08984. Allow to dry and, using a knife, reduce the polyurethane thickness to 1 mm.
Use 3M™ Single Step Low VOC Primer 58012 to protect exposed bare metal from corrosion.
Step 2 - Windshield preparation
Ceramic ( Fritted glass )
-
Always ensure that surfaces are clean and free from contamination.
Use Use 3M™ Glass Cleaner 08631 or 3M™ Adhesive Cleaner 08984 on Red Scotch-Brite™ Material.
Clean with a light action.
Apply a thin layer of 3M™ Single Step Low VOC Primer 58012 to the Glass Ceramic with a 3M™ Applicator 08605 and leave for a minimum of 10 minutes.
Alternatively and as appropriate, use 3M™ Activator 50661, which is developed specifically for Encapsulated , Pre-Applied and Pre-Primed windshields.
-

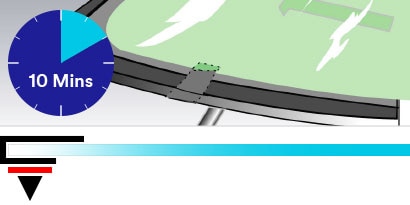

Encapsulated -

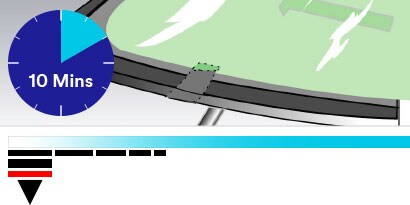

Pre-Applied PU -

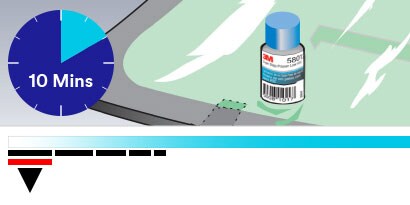

Pre-Primed

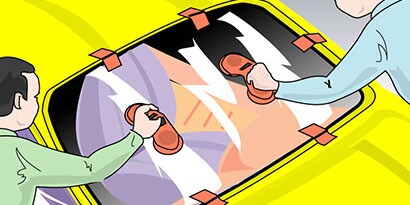

Step 3 - Fitting the windshield

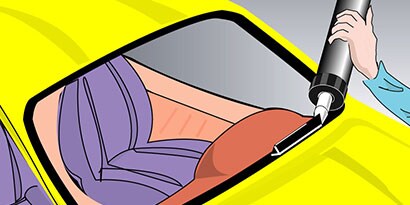

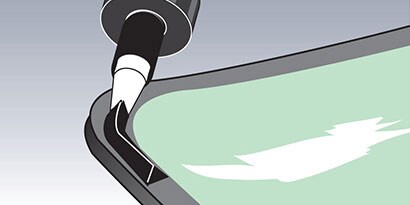

Apply selected 3M™ Glass Adhesive with appropriate applicator to the newly prepared windshield or prepared pinch weld as appropriate. For product and applicator overview see below.
-
3M™ Glass Adhesive 1-hour HLMC
Part Number: 58015
Pack: Cartridge
Size: 310ml3M™ Glass Adhesive 1-hour HLMC
Part Number: 50681
Pack: Sachet
Size: 415ml -
3M™ Glass Adhesive FC
Part Number: 8613
Pack: Cartridge
Size: 310ml3M™ Glass Adhesive FC
Part Number: 8628
Pack: Sachet
Size: 310ml3M™ Glass Adhesive FC
Part Number: 8629
Pack: Sachet
Size: 415ml -
3M™ Glass Adhesive
Part Number: 8603
Pack: Cartridge
Size: 310ml3M™ Glass Adhesive
Part Number: 8615
Pack: Sachet
Size: 310ml3M™ Glass Adhesive
Part Number: 8616
Pack: Sachet
Size: 415ml
Designed to promote adhesion between the chosen 3M™ Adhesive and the glass. Select the correct primer/activator depending on windshield type.
- Never use alcohol. *The primer must not be directly under UV exposure, a frame has to be applied on the other side in order to avoid UV exposure.
3M™ Glass Adhesives (Cartridges & Sachets)
