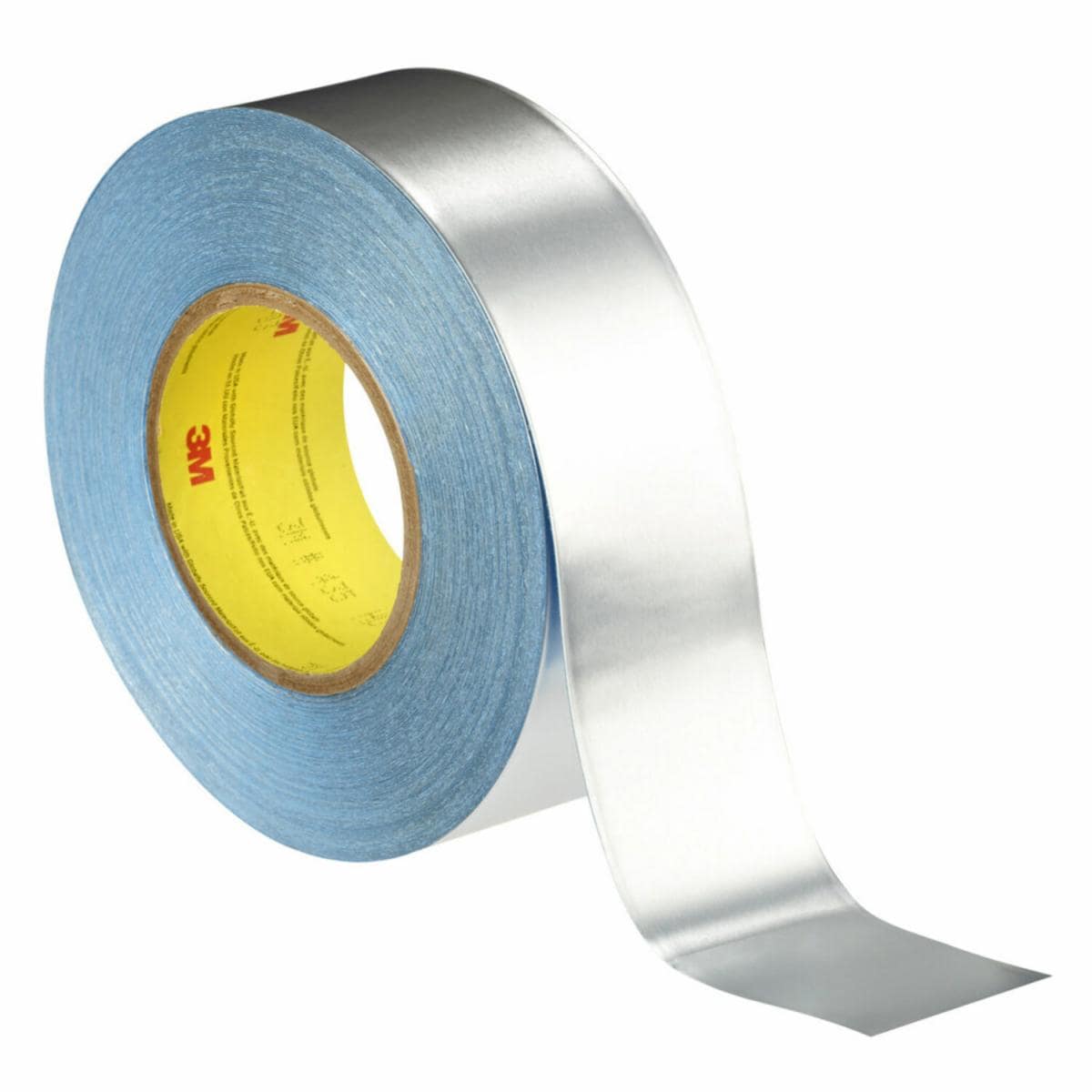

3M™ Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminium foil tape. The aluminium foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner. This tape absorbs and dissipates vibration, reducing noise and fatigue.
3M™ Metal Tape 435 is a 0.34 mm thick, silver, conformable soft aluminum tape. Designed to reduce noise and absorb and dissipate vibrations, mainly by reducing structure-borne noise in metal and composite panels and support structures, it can achieve effective attenuation with as little as 10% surface coverage. This tape is durable. It resists moisture, weather, UV damage and flames. It is a durable, chemical-resistant tape that performs well over a wide temperature range, especially at lower temperatures. It can be used at temperatures from -60 ° C to 20 ° C. function. Protective cover for the production of stamped parts. Recommended applications Reduce unwanted resonance noise, vibrations and fatigue in metal plates and supporting structures. Low temperature applications in aerospace and industry.
Adhesive Type | Viscoelastic Polymer |
Back-Side Adhesive Thickness | 0.2 mm |
Backing (Carrier) Thickness (Metric) | 0.2 mm |
Backing Material | Aluminum Foil |
Brands | 3M |
Elongation at Break | 12.0 Percent |
Industries | Transportation, Automotive, Aerospace, Appliance, Electronics, General Industrial, Specialty Vehicle, Construction, Metalworking, Military and Government |
Maximum Operating Temperature (Celsius) | 20 ℃ |
Minimum Operating Temperature (Celsius) | -60 ℃ |
Primary Liner | Polyethylene |
Product Color | Silver |
Shelf Life | 24 Month |
Tensile Strength (metric) | 875 N/100mm |
Total Tape Thickness without Liner (metric) | 0.2 mm |
Units per Case | 6.0 |
Overall Length (Metric) | 32.91 m |
Overall Width (Metric) | 50.8 mm |
