Common Stress Types in Adhesive Joints

Regardless of the joint type used, it’s important to understand the different stresses that are imparted onto a bonded assembly. Adhesives and tapes perform at their best when the stress is two-dimensional to the adhesive, dispersing a load across the entire area of a bond line. Adhesives and tapes perform at their worst when the stress is one-dimensional to the adhesive, concentrating a load onto the leading edge of a bond line. Many traditional joint designs incorporate these one dimensional stresses and may require modification for an adhesive bond to be most effective.

  • Learn about the impact of tensile stress on a bonded assembly.

    Tensile Stress

    Tensile is pull exerted equally over the entire joint. Pull direction is straight, in-plane, and away from the adhesive bond. Force is distributed across the entire area of the bond line.


  • Learn about the impact of shear stress on a bonded assembly.

    Shear Stress

    Shear is pull directed across the adhesive, forcing the substrates to slide over one another. Here again, the force is in-plane, and the force is distributed across the entire area of the bond line.


  • Learn about the impact of compression stress on a bonded assembly.

    Compression Stress

    Like tension, compression is a force applied to a bond that is in-plane and straight. Unlike tension, the force is being applied toward the adhesive. Force is distributed across the entire area of the bond line.


  • Learn about the impact of cleavage stress on a bonded assembly.

    Cleavage Stress

    Cleavage is pull concentrated at one edge of the joint, exerting a prying force on the bond. While one end of the adhesive joint is experiencing concentrated stress on the leading edge, the other edge of the joint is theoretically under zero stress. Cleavage occurs with two rigid substrates.


  • Learn about the impact of peel stress on a bonded assembly.

    Peel Stress

    Peel is a pull that is also concentrated at one edge of the joint. One of the substrates is flexible, resulting in even more concentration at the leading edge than with a cleavage joint.


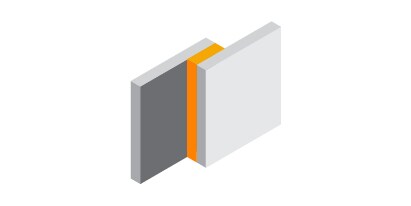

Designing Adhesive Joints

Joints that are well designed for adhesives place a majority of the stress into tensile, compression or shear modes. This allows the force to be applied over the entire adhesive area. Joints placing stress into cleavage or peel concentrate the stress onto the leading edge which may lead to premature bond failures, especially if subjected to vibration, impact or fatigue.

In addition to the stress type, optimising a joint may also require consideration of the dimensions. Adhesives are tested and reported for their approximate performance in units of force per area (e.g. shear loading, Newtons per square meter) or force per length (e.g. peel, Newtons per centimeter). By configuring the bond dimensions to accommodate loads imparted per area, bond durability can be improved.
