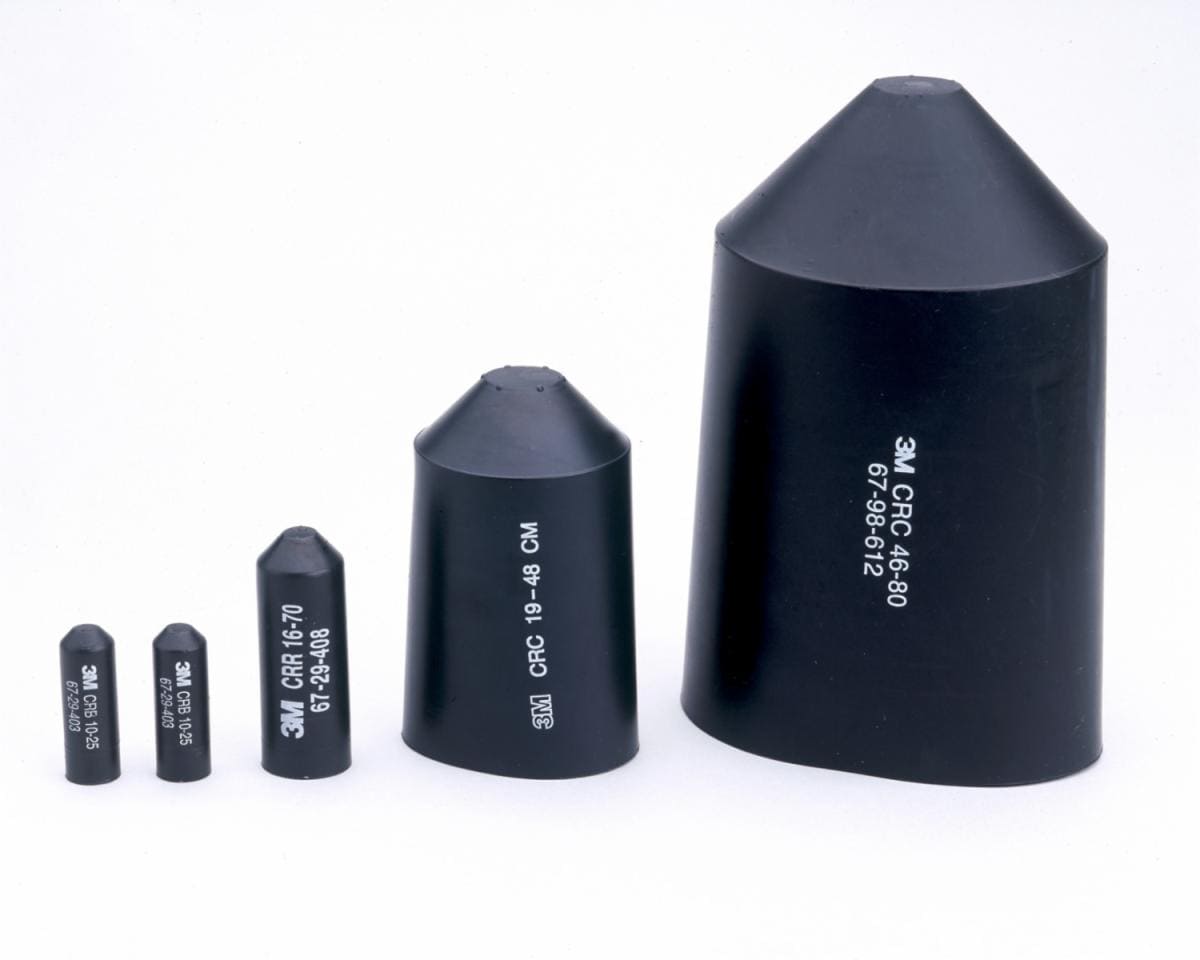

3M™ Heatshrink Cable End Cap SKE, 15/40, 15-32 mm
- 3M ID DE272919544
- UPC 04046719192953
Details
Highlights
- Offers mechanical and environmental protection to cable ends
- Adhesive lining offers flexible, water-resistant barrier
- Suitable for heavy-duty applications
- Comes in black colour
- Made of flame-retardant, semi-rigid, cross-linked polyolefin
- Withstands temperatures of -30 to 135 degrees C
3M™ Heat Shrink End Cap SKE provides mechanical and environmental protection as well as sealing to cable ends. The semi rigid, flame retardant polyolefin construction makes the end cap suitable for heavy duty applications. The adhesive lining forms a permanent, flexible and water resistant barrier.
3M™ SKE is a semi-rigid, cross-linked modified polyolefin heatshrink cable end cap with hot melt adhesive. Minimum shrink temperature is 120°C, operating temperature is -30°C to +135°C. SKE is RoHS compliant, halogen free and provides good corrosion resistance. On application of heat the adhesive melts and the part shrinks forming a perfect watertight seal. End caps are designed for quick and easy insulation, sealing of cable end for indoor and outdoor applications and provides resistance to abrasion, weathering and chemical attack. SKE is available in sizes from 8/4 mm to 126/63 mm with a wall thickness (recovered) of 2.5-4.0 mm and colour black. Standard packaging in bulk- or standard-pack.
Typical Properties
| Applications | Sealing the end of the cable |
| Brands | 3M |
| Dielectric Strength (V/mil) | 10 kV / mm |
| Flame Retardant | Non Self-Extinguishing |
| Halogen Free | Yes |
| Inner Diameter After Heat-Shrink | 15 mm |
| Inner Diameter Before Heat-Shrink | 40 mm |
| Material | Adhesive-lined Polyolefin |
| Minimum Shrink Temperature | 120 ℃ |
| Operating Temperature (Celsius) | -30 up to +135°C |
| Product Color | Black |
| Product Type | Heat-shrinkable Material |
| Shrink Ratio | 2:1 |
| Shrink Type | Heat Shrink |
| UV Resistant | Yes |
| With Inner Glue | Yes |
| Overall Diameter (Metric) | 40 mm |
| Overall Length (Metric) | 90 mm |
