3M™ Scotchflex™ Cable Tie, FS 160 C-C, Neutral, 160 mm x 4.8 mm
- 3M ID KE234000146
- UPC 8021684538940
Details
Highlights
- Secure wire bundles and harness components quickly, without slipping
- Curved tip allows for faster threading and installation
- Moulded from UL approved 6/6 nylon
- UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
- Black cable ties are weather reistsant
3M™ Scotchflex™ Cable Tie are moulded from UL approved 6/6 nylon. The are self-extinguishing according to UL 94 V2 and have an opening load from 80 to 800N.
Use 3M™ Scotchflex™ Cable Tie, moulded from UL approved 6/6 nylon, for a wide range of fastening solutions in electrical installation, maintenance and repairs. This polyamide cable tie is resistant to fuels, lubricants, most chemicals and is weather resistant (black only). They have a normal service temperature range of -40°C to 85°C and an application temperature range of -10°C to 60°C.
Typical Properties
| Applications | Secure wire bundling |
| Band Width | 4.8 mm |
| Brands | 3M |
| Cable Diameter Range | 8,1 - 39,4 mm |
| Flammability Rating | UL 94 V-2 |
| Halogen Free | Yes |
| Length Belt/Tape/Tie | 160 mm |
| MIL Approval | No |
| Material | PA 6/6 |
| Maximum Bundle Diameter (metric) | 42 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Insulation Outside Diameter | 3.7 mm |
| Maximum Operating Temperature | 85 Degree Celsius |
| Maximum Operating Temperature (Celsius) | 85 ℃ |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Holding Force | 300 N |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Operating Temperature (Celsius) | 85 Degree Celsius |
| Operating Temperature Range (Celsius) | -40 °C to 85 °C |
| Product Type | Cable Ties |
| Solvable Fastener | No |
| Tensile Strength (metric) | 220 N |
| Type | Standard |
| UL Approval | Yes |
| UV Resistant | No |
| UV-stable acc. ASTM D6779 | No |
| Units per bag | 100 |
| VG Approval | No |
| Overall Length (Metric) | 160 mm |
| Overall Width (Metric) | 4.8 mm |
Resources

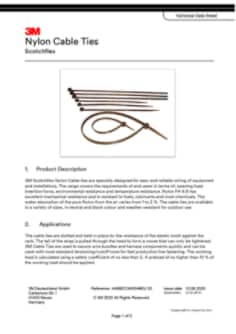

3M Scotchflex Nylon Cable ties TDS EN EUData Sheets
(PDF)
